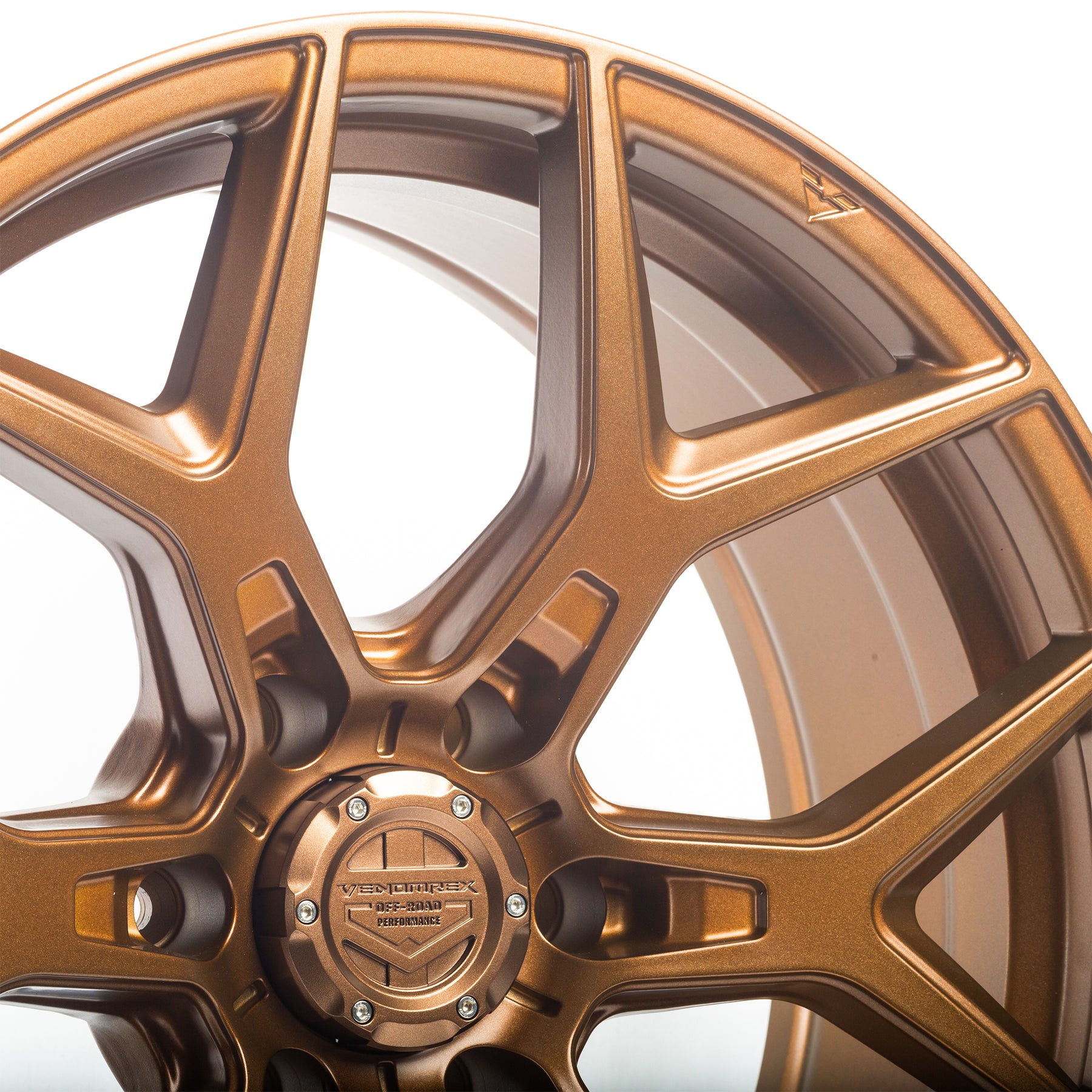

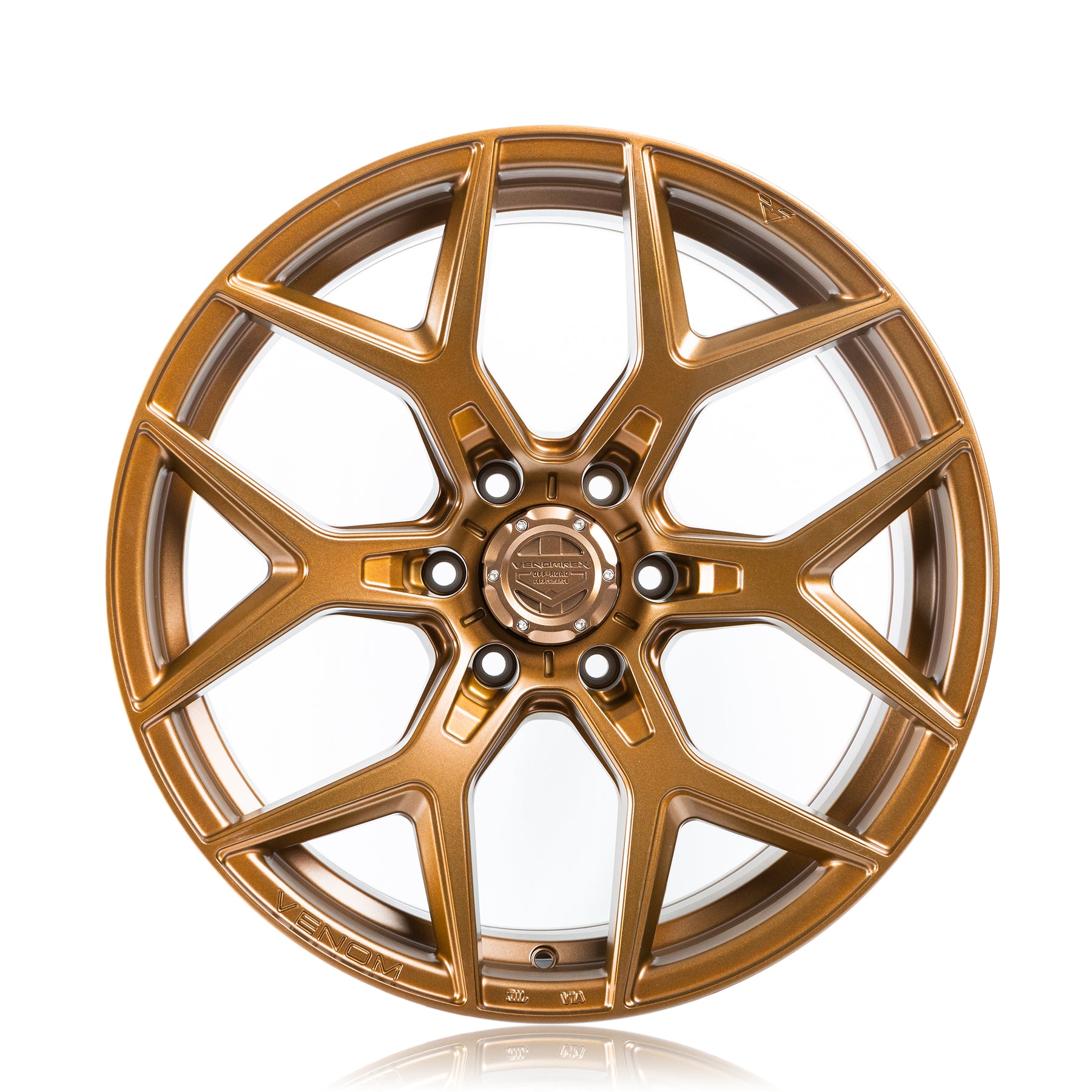

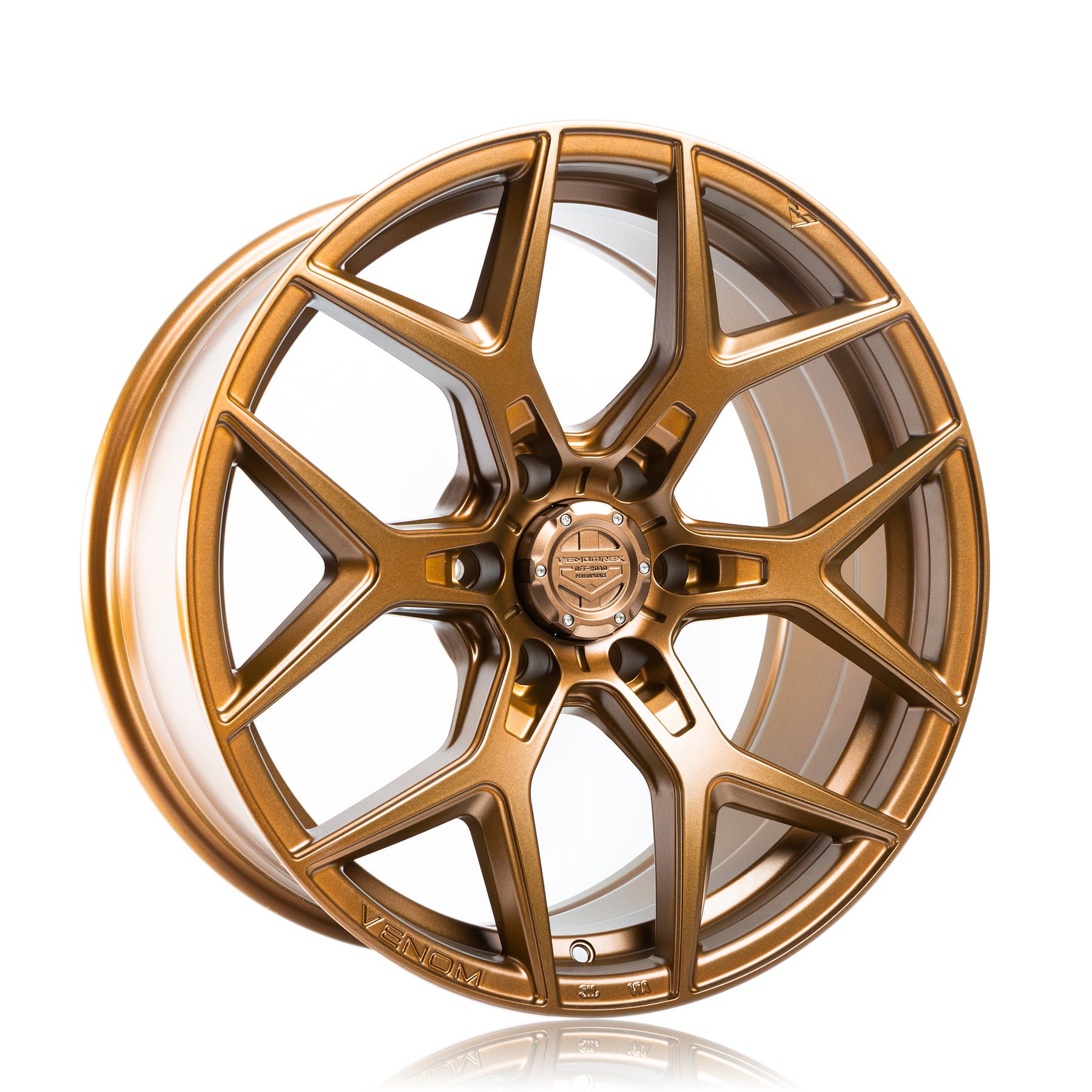

20" VR-601 Desert Bronze
20" VR-601 Desert Bronze
20" VR-601 Desert Bronze

20" VR-601 Desert Bronze

Sale price$425.00
SKU: VR601.20090.6139.0C.106.DB

Price shown for 1. For a set, add 4 to cart.

Application:

Application

Quantity:

Details

The VR-601 combines our distinct and innovative design methods with the busy and rugged styling of traditional truck wheels. Our engineers have utilized the design elements to create one of the lightest 20" flow forged wheels available for on and off road use.

  • DESIGN - Distinct and innovative design methods, utilization of back-pad pocketing to reduce wheel weight.
  • FLOW FORGED TECHNOLOGY - Constructed using flow forged technology for a stronger and lighter wheel.
  • WARRANTY - Our wheels come with a lifetime warranty against manufacturer and structural defects.

SPECIFICATIONS

Wheel diameter (IN): 20
Wheel Width (IN): 9
Bolt pattern: 6x135, 6x139.7
Wheel weight (LBS): 29.4

Offset (MM): +0, +12
Backspacing (IN): 4.5, 5.5
Hub Bore (MM): 87.1, 106
Max load (LBS): 2600


Technology

Flow Forged

Our lightweight technology produces wheels that are lighter in weight compared to a conventional cast construction, yet substantially stronger. The majority of surplus weight can be shaved by the use of less but stronger aluminum. In addition, we meticulously reduce the weight of the wheel utilizing back-pad pocketing as well as front and rear spoke pocketing.

Built Stronger

With our wheels being constructed using flow forged technology, our wheels are substantially stronger than our competitors cast wheels. Cast wheels tend to be less durable, brittle, prone to cracking and failure. With our flow forged wheels being more durable, you won't have to worry about any cracks when you're on the trail, desert or on your daily commute.

Built Lighter

The flow forging process we use creates very lightweight wheels compared to the competition. In the end, you end up with a wheel capable of handling higher load ratings than a cast wheel. With a flow forged wheel, you save about 25% weight compared to a cast wheel of the same size and spec. Lighter weight wheels equals reduced unsprung and rotational mass.

Example: A competitors 17x9 cast wheel weights in at about 38.5 lbs, while our similar spec 17x9 flow forged wheel weighs in at about 27.6 lbs. That's almost at 11 lbs difference!
